Product Details

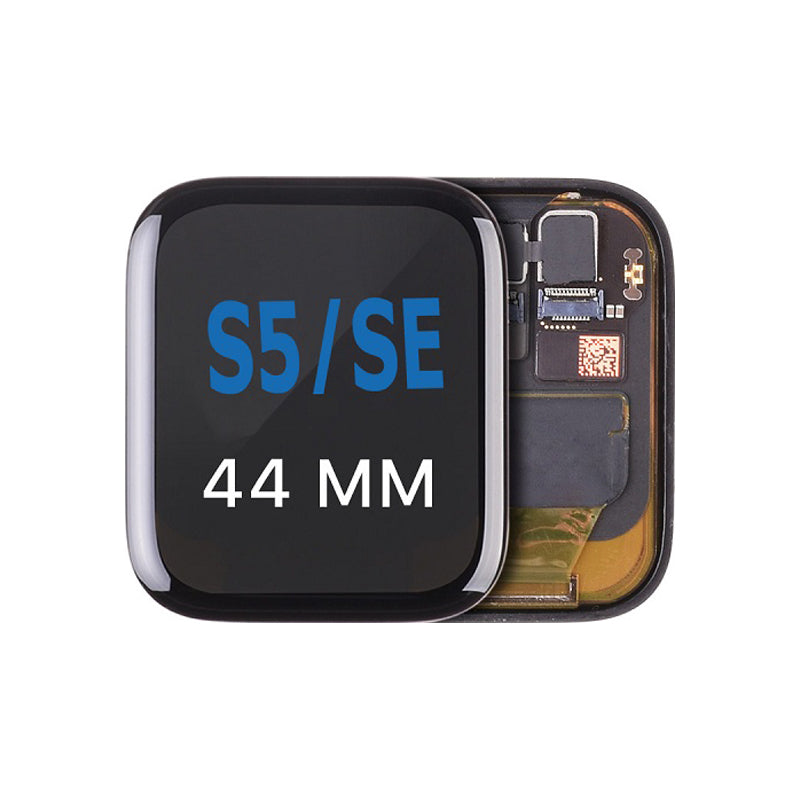

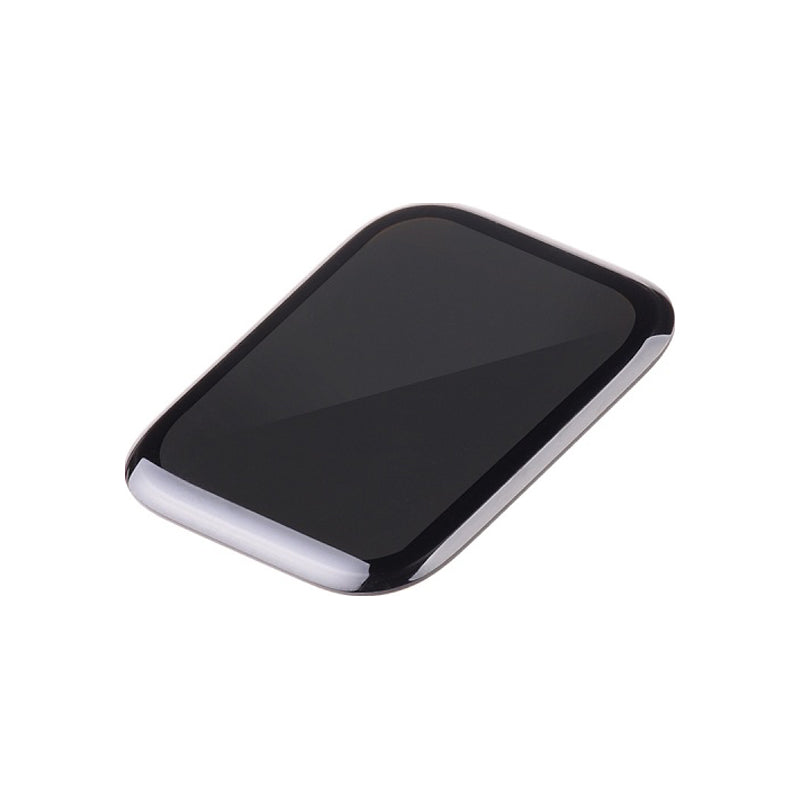

If your front glass is scratched or cracked or the OLED screen is damaged on your Series 5/SE Apple Watch, this replacement screen may be what you need to fix it.
- OEM 368 x 448 44mm OLED Display
- 326ppi, 1000 cd/m2
- Touch Screen Digitiser
- 3x ZIF connectors
Please Note
This Apple Watch OLED Screen is not compatible with the 40mm version of the Series 5/SE Apple Watch
Please Note
This part will either be refurbished or an A-Grade Used Genuine Apple replacement
Specifications
- Part Type: OLED Replacement Screen
- Resolution: 368 x 448
- Pixel Density: 326 ppi
- Watch Size: 44mm
- Brightness: 1000 cd/m2
- Warranty: 12 Months
Compatible Model Numbers
Model Number (A Number)
- A2093
Series 5 44mm GPS Model NumbersHow do I find my Model number?
Model Identifier
- Watch5,2
EMC Number
- EMC 3318
Device Number (M Number)
- MWT32
- MWT42
- MWT52
- MWT62
- MWT72
- MWVD2
- MWVF2
- MX3V2
Model Number (A Number)
- A2095
- A2157
Series 5 44mm GPS+LTE Model NumbersHow do I find my Model number?
Model Identifier
- Watch5,4
EMC Number
- EMC 3320
Device Number (M Number)
- MWQK2
- MWQL2
- MWQM2
- MWQN2
- MWQP2
- MWQQ2
- MWQR2
- MWQT2
- MWQU2
- MWQV2
- MWQW2
- MWQX2
- MWQY2
- MWR02
- MWR12
- MWR22
- MWR32
- MWR42
- MWR52
- MWR62
- MWR72
- MWR82
- MWR92
- MWRA2
- MWVY2
- MWW12
- MWW32
- MWW52
- MWW62
- MWW92
- MWWC2
- MWWE2
- MWWG2
- MWWH2
- MWWJ2
- MWWM2
- MX392
- MX3A2
- MX3E2
- MX5C2
- MXR12
Model Number (A Number)
- A2352
SE 44mm GPS Model NumbersHow do I find my Model number?
Model Identifier
- Watch5,10
EMC Number
- EMC 3486
Device Number (M Number)
- MYDR2
- MYYK2
Model Number (A Number)
- A2354
- A2356
SE 44mm GPS+LTE Model NumbersHow do I find my Model number?
Model Identifier
- Watch5,12
EMC Number
- EMC 3488
Device Number (M Number)
- MYEP2
- MG063
- MYEX2
- MG0A3
Installation Help
Watch the video above for assistance in completing this repair
Here is some tools you may need to help you complete the repair.
- #11 Point Knife Blades x5
- uFix iOpener Heat bag
- iFlex opening tool
- Apple Watch Series 5 44mm LCD Adhesive
- Apple Watch Series 4 44mm Force Touch Gasket
- Fine Tipped Curved Tweezers
- Black Spudger
- iGadget 5x Plastic Opening cards
- Screw Mat
Here are some helpful tips to assist you in completing a safe repair on your device. If you are unsure of something or have any quesions, please feel free to contact us either by phone (0508 IGADGET) or by email
- Always track your screws to avoid putting back in the wrong place and damaging your device. You can draw a picture of your watch and tape the screws to the right places or use a screw mat
- Always power down your device prior to working on it
- Make sure you always unplug the battery before attemping any component removal
- When attempting to remove the screen, be careful not to push the blade or iFlex tool in too far or too hard, doing so may cause damage to the internal parts. Only 3mm depth is required to cut the adhesive. Draw a mark on your tool to help with depth management.
- Test the LCD is functioning properly before sealing up the device
- When removing the screen, it is very easy to tear the force touch gasket. We recommend having a spare force touch gasket on hand incase this happens to prevent issues after replacement.
What’s In The Box
- 1x Apple Watch Series 5/SE 44mm OLED Screen Replacement
